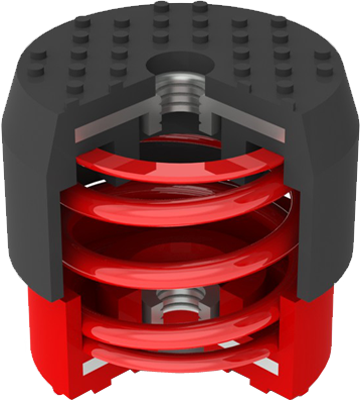

FDHL Red Vibration damper kit
Suitable for heat pumps weighing from 70 til 120 kg
- Designed for vibration isolation of smaller machines with a rotational speed of more than 600 RPM.
- Can handle loads from 70 to 120 kg.
- M8 center thread and non-slip top and bottom, where the spring is protected from wind and weather.
- Especially suitable for heat recovery systems, heat pumps, small fans and air conditioning systems.
The kit consists of:
- 2 pcs. FDHL-40
- 2 pcs. FDHL-50
- 8 pcs. M8x20 bolts and washers
- Installation instructions

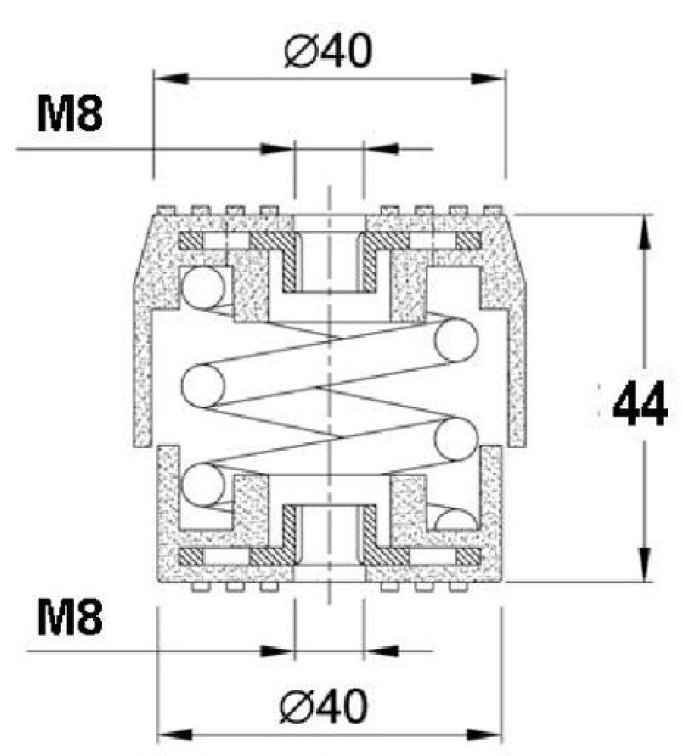

Technical data
| Type | Max. load [kg] |
Compression [mm] |
Unloaded height [mm] |
|---|---|---|---|
| FDHL-40 | 40 | 10 | 44 |
| FDHL-50 | 50 | 9 | 44 |
Deflection and degree of isolation
